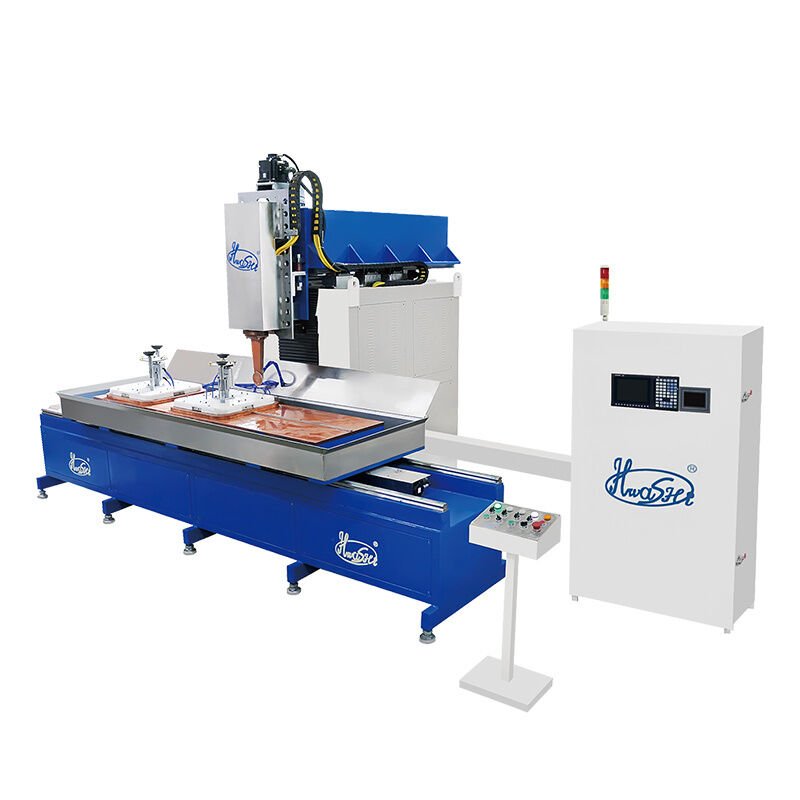

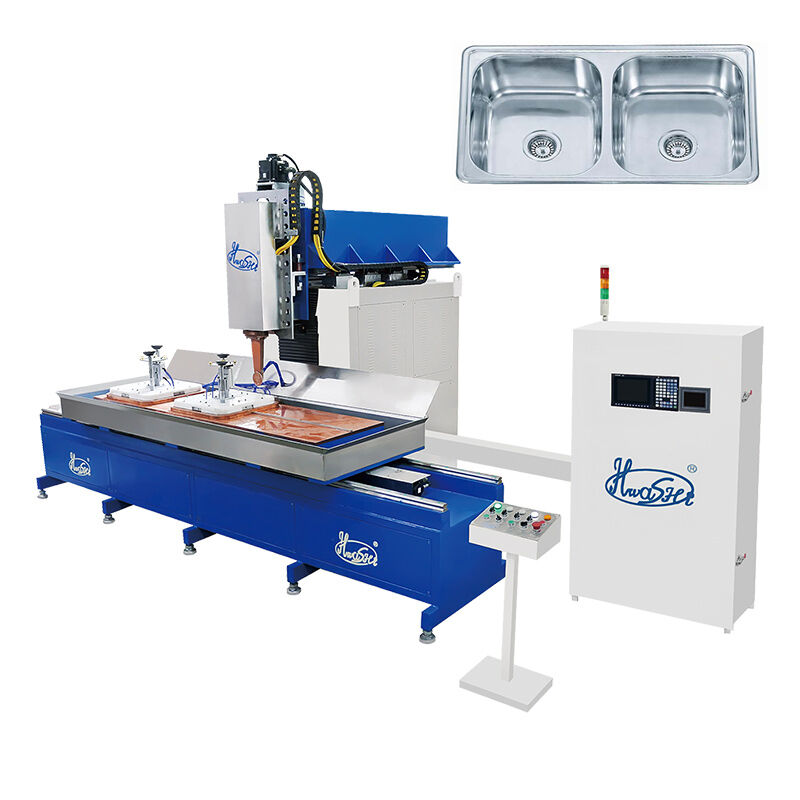

160kVA Rated Capacity Stainless Steel Sink Welding Machine with CNC 3-Axis Servo Control and Medium-Frequency Inverter (MFDC) Seam Welding

160kVA stainless steel sink welder

CNC 3-axis servo welding machine

MFDC seam welding machine

Herkunftsort:

CE/CCC/ISO

Markenname:

HWASHI

Zertifizierung:

CE/CCC/ISO

Treten Sie mit uns in Verbindung

Fordern Sie ein Zitat

Produktdetails

Anwendung:

Schweißen für die Spüle des Küchens

Nennkapazität:

160KVA

Formzeit:

1min

Einzelnes Bruttogewicht:

65.000kg

Eingangsleistung:

Einphasen 380V10% 50Hz

Verwendung:

Spülenschweißen

Verbrauch von Kühlwasser:

1000l/h

Standard:

CE/CCC/ISO

Zahlungs-u. Verschiffen-Ausdrücke

Min Bestellmenge

1 Satz

Preis

Verhandlungsfähig

Verpackung Informationen

Seeholzverpackung

Lieferzeit

7-30 Arbeitstage nach Erhalt Ihrer Zahlung

Zahlungsbedingungen

L/C, T/T

Versorgungsmaterial-Fähigkeit

50 Sätze pro Monat

Verwandte Produkte

Video

160kVA Rated Capacity Stainless Steel Sink Welding Machine with CNC 3-Axis Servo Control and Medium-Frequency Inverter (MFDC) Seam Welding

Erhalten Sie besten Preis

Video

Schweißmaschine für Edelstahlspülen, die für die Bereitstellung gleichmäßiger Schweißnähte bei der Herstellung von Küchenspülen entwickelt wurde

Erhalten Sie besten Preis

Video

Hwashi Inox SS304 CNC 3-Achsen-Steuerung Sink Seam Schweißmaschine mit 160kVA Nennleistung und CE/CCC/ISO-Zertifizierung

Erhalten Sie besten Preis

Video

Hwashi Inox SS304 CNC 3-Achsen-Steuerung Sink Seam Schweißmaschine mit 160kVA Nennleistung und CE/CCC/ISO-Zertifizierung

Erhalten Sie besten Preis

Treten Sie mit uns in Verbindung

+8613380655800

marketing@hwashi.com

Kontakt jetzt

Produkt-Beschreibung

Stainless Steel Sink Welding Machine

Designed to provide consistent, high-quality welds for kitchen sink manufacturing applications, delivering flawless, high-strength seams for stainless steel sink bowls.

Application Overview

This specialized automated solution addresses the unique challenges of welding thin-gauge stainless steel (0.8-2mm thickness), combining precision engineering with intelligent control to redefine seam quality and production efficiency.

Key Advantages

CNC 3-Axis Servo Control

Japan Mitsubishi servo motors control X-axis (mold movement), Y-axis (electrode vertical travel), and A-axis (360° electrode rotation). Stores up to 95 welding programs for quick switching between sink models.

Medium-Frequency Inverter (MFDC) Seam Welding

2nd-generation MFDC power source with 30%+ more energy efficiency than conventional AC. Features fast DC current rise, stable output, and minimal spatter with current control accuracy of ±1%.

Large Copper Flat Table Electrode

Specially designed large flat copper platform ensures stable, uniform conductivity and minimizes heat distortion on thin stainless steel sheets (0.8–1.5mm).

360° Rotating Welding Wheel

Servo-controlled A-axis enables 360° rotation of the welding roller, seamlessly welding R-corners, straight edges, and curved profiles in a single pass.

Automatic Moving Welding Table

Synchronized operation with X-axis travel ≥2,500 mm, Y-axis travel ≥750 mm, and Z-axis travel ≥350 mm for full coverage of various sink sizes.

Water-Cooled System for Continuous Production

Water-cooled transformer, SCR, and electrode assembly enable extended continuous operation without overheating, maintaining stable weld quality.

Workflow Process

Operator places sink bowl onto the fixture on the moving table
Table automatically moves to welding position
Welding roller follows pre-programmed path, creating continuous sealed seam
Table returns to loading position for finished sink removal
Next cycle begins immediately with near-zero idle time

Applications

Application	Details
Kitchen Sink Seam Welding	Single bowl, double bowl, triple bowl — square, rectangular, round
Handmade Sink R-Corner Welding	Precise corner welding for premium handmade sinks
Stainless Steel Basin Welding	Wash basins, prep sinks, utility sinks
Commercial Kitchen Sinks	Large-format sinks for restaurants, hotels, hospitals
Stainless Steel Container Welding	Sealed containers, tanks, housings requiring watertight seams

Technical Specifications

Model	WL-FS-AC75K	WL-FS-MF75K	WL-FS-MF100K
Input Voltage	Three-phase 380V±10% 50Hz	Three-phase 380V±10% 50Hz	Three-phase 380V±10% 50Hz
Input Power	75KVA	75KVA	100KVA
Rated Input Current	115A	115A	150A
Rated Duty Cycle Rate	50%	50%	50%
Max Secondary Floating Voltage	DC9.75V	DC9.75V	DC11.6V
Secondary Max Short Circuit Current	26500A	26500A	28000A

Additional Features

Intelligent microcomputer single piece controller with pure digital setting and LED digital display
Automatic current compensation during voltage fluctuations
High-precision silicon controlled rectifiers from West Germany, IXYS and IR (United States)
Advanced mercury conductive technology for transmission tile axis
Welding roll wheel made from Japanese alloy copper material
Transformer using high-purity Japanese silicon steel sheets
Mosaic connection between welding mold and machine for easy assembly

Competitive Advantages

Leading Brand: HWASHI is the premier resistance welding brand in China for 20 years
Customized Service: Design and develop welding machines according to specific requirements
Genuine Product Quality: 12-month warranty, ISO9001:2000 and China Compulsory Certification compliant
After-Sales Support: 24-hour technical support by email with professional team
Quick Delivery: Just-in-time delivery service
Customer Responsiveness: Prompt response with customer satisfaction as primary goal
